HVAC - RG35 MRAP
12kW DUAL SIDE WALL AIR CONDITIONING UNIT
Ref no. RG35-12

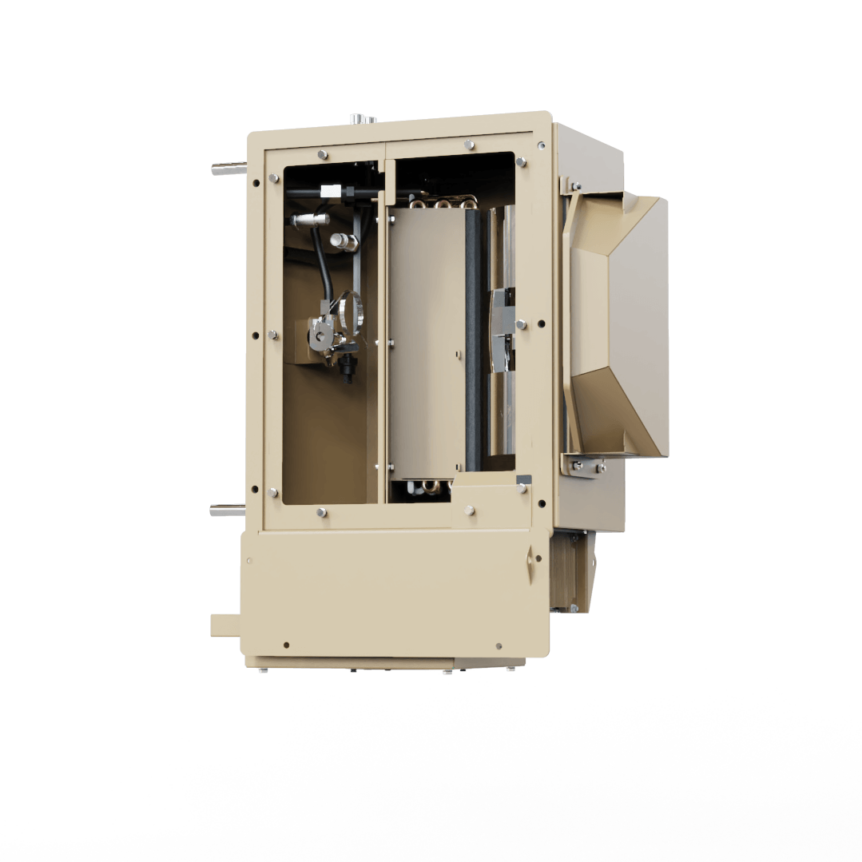

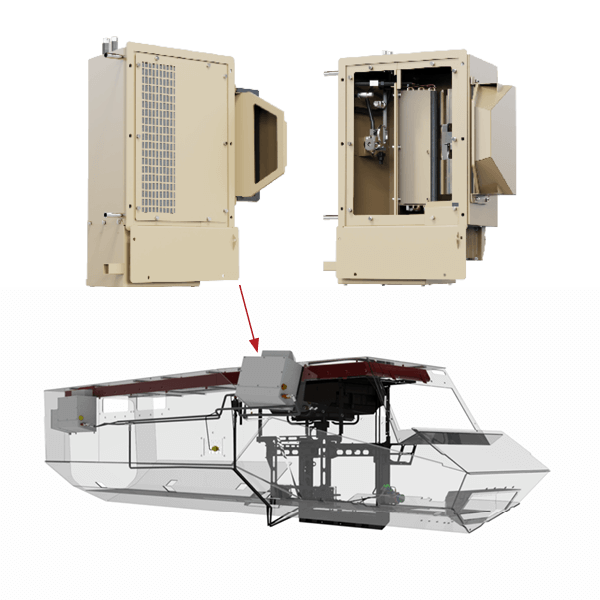

The RG35 is a 12kW dual evaporator split air conditioning system. The evaporators front and rear are integrated in right hand side boxed enclosures which are mounted on the outside of the vehicle.
The ducting interface is custom designed to suit the vehicle-specific roof/turret layout.

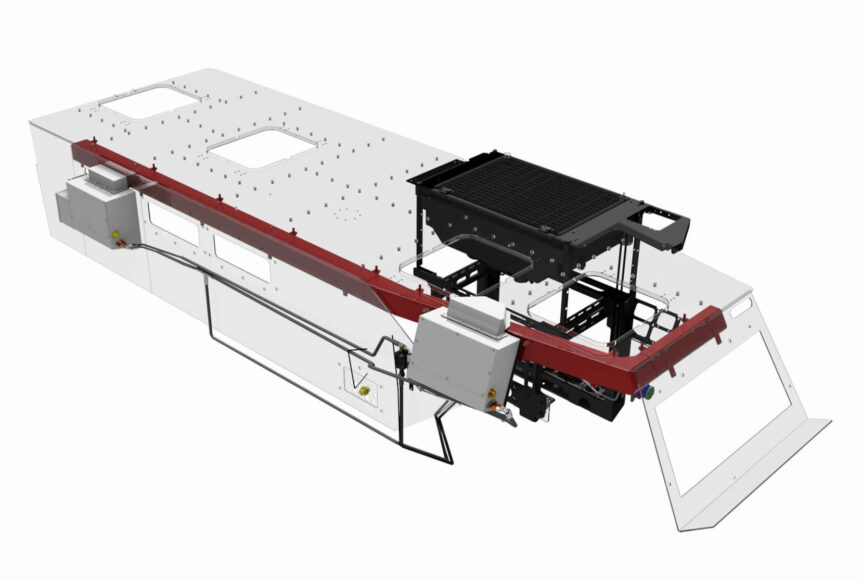

Mounting brackets are designed to suit the required interfaces. Each evaporator has one dual scroll blower to allow for high pressure losses in constrained air ducts and a condenser core assembly is mounted on vehicle engine cooling pack (radiator). The 121cc displacement (engine driven) compressor is mounted to be directly belt driven from the vehicle engine. A fresh air blower unit with cyclones and pleated media filter cartridges is part of the rear evaporator unit.
Specifications
1
Adverse Conditions
Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.
2
Low Noise
Automatic Fan speed control, cladded air channels & ducts.
3
Slim Design
Designed to blend with Vehicle Ergonomics and Esthetic Design.
4
Rugged & Reliable
Solid construction for rough terrains and potential mechanical damage.
5
Mil.Std 810 & 461 Qualified
Design, Manufacturing and Qualification Conform to International Military Standards.
Click to expand Gallery images
Specifications
|
Ref. RG35-12 |
|
|
Cooling Capacity |
12kW |
|
Max Ambient |
55°C |
|
Refrigerant |
R134a |
|
Power Input |
28VDC, 50A |
|
Fault Finding |
HMI/Data Logging |
|
Weight & Dimensions (Per Evaporator) |
30kg; (450mm L x 550mm W x 220mm H) |
|
Protection |
IP54 |
|
Compressor |
121cc Displacement TRS12 (Engine Driven) |
|
Condenser |
Independent, mounted on radiator |
|
Fresh Air |
340m3/h |
|
Optional |
|
|
Cabin and aircon options can be offered |
