AMV Compact Auxiliary Power Unit
COMPACT 3.5kW AUXILIARY POWER UNIT (APU)
Ref no. HYAPU35

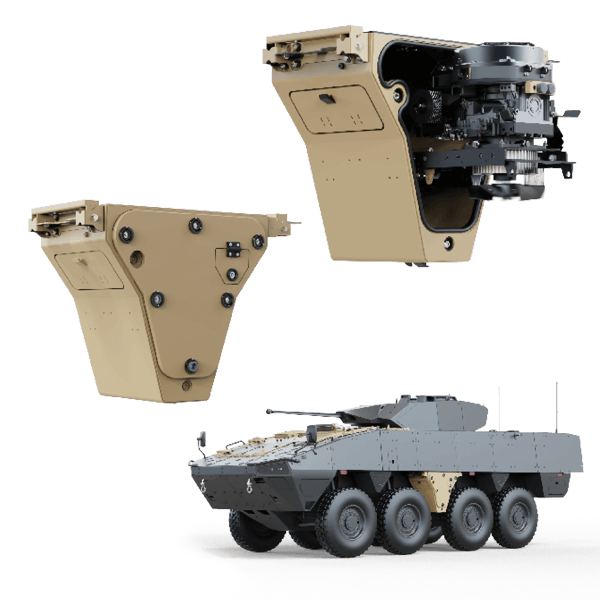

Original design from the Patria 8x8 Armoured Modular Vehicle (AMV) and specifically re-designed for the Badger variants for the South African Defence Force.
The Permanent Magnet Generator (PMG) was developed by IDM (Italy) to fit into one direct driven assembly with the vertical shaft Hatz air cooled engine. The air cooling of the unit was optimized for full load in a 48°C ambient with all hatches closed. This now enables continuous operation whilst the vehicle is moving and/or in full operation. All hatches can seal watertight to allow for fording.

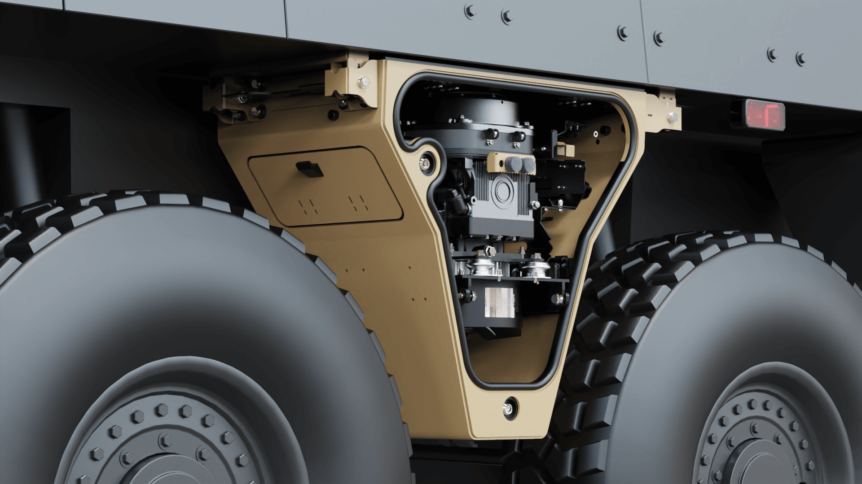

The unit slides out on rails to give quick access for inspection, maintenance and repairs. The unit fits in a custom side bin between two of the wheel arches.
Specifications
Product Video
1
Modular
Fully Self contained with only Electrical Power Connection & Installation Interfaces.
2
Adverse Conditions
Design & Built to still give 100% Performance in extreme ambients of -10°C to 55°C.
3
Extreme Shock and Vibration
Typical Mobile Applications. Fatigue qualified for continuous and irractic shock and vibration.
4
Slim Design
Designed to blend with Vehicle Ergonomics and Esthetic Design.
5
Mil.Std 810 & 461 Qualified
Design, Manufacturing and Qualification Conform to International Military Standards.
Click to expand Gallery images
Specifications
|
Ref: HYAPU35 |
|
|
Hatz Air Cooled with direct driven Permanent Magnet Generator (PMG) |
|
|
Output Power |
28VDC 3.5kW @ 3000rpm |
|
Max Ambient |
48°C |
|
Engine Cooling |
Air Cooled |
|
Operation |
APU can operate continuously with front APU door closed. (Hatches on side and bottom must be open.) |
|
Vibration |
MIL-STD-810F, Method 514.5 |
|
Compliance |
EPA Tier 4 Compliance |
|
Fault Finding |
Bluetooth / CAN Bus |
|
Weight & Dimensions |
95kg; (980mm W x 530mm D x 780mm H) |
|
Protection |
Low Oil Pressure Protected; Airflow Inlet/Outlet Open Detection Over Current (Circuit Breaker) |
|
Construction |
5 & 10mm Aluminium Enclosure. Engine slides out for easy maintenance |
|
Optional |
|
|
Engine Start |
Automatic |
